Double kindergarten, Lohn-Ammansegg
2004

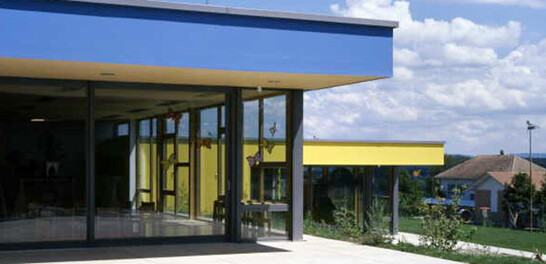

The municipality of Lohn-Ammansegg wants to build a new double kindergarten. The planned object consists of 2 cubes, which are positioned laterally and offset in height on a slight slope.
The project
The assignment Due to the planned use, a division into two parts with one row of columns was achieved within the cubes. At the same time, the span was reduced from about 11.50 m to about 7.40 m. The roof elements were formed from 2 edge beams in BSH 140 / 440 and cross beams in between. The largest element measured around 4.00 x 11.50 m.
The construction method
The Timbatec office provided the foundation for the extremely fast and precise assembly with structural analysis, design and factory planning on CADWORK 3D and 2D. At the request of the contractor, all joints (including those in the upright frame timbers) were designed as dovetail joints. With modern joinery systems, the production does not represent any additional effort, but the assembly of the elements is faster and, above all, error-free.
Construction Data
- Floor area: 460 m2
- Room height: 2.70 m
- Building volume: 1240 m3
- boards OSB 3 15 mm 205 m2
- Boards OSB 3 18 mm 416 m2
- boards DWD 200 m2
- 3-layer board Fi B/C 19 mm with acoustic perforation 450 m2
- 3-layer board Fi C/C 27 mm 120 m2
- Glulam GL 24h 52 m3
- Solid wood C24 4.4 m3
Services of Timbatec
- Statics and construction
- Works planning 3D and 2D
Timber constructioncontractors
Hector Egger Holzbau AG
4900 Langenthal
Timber construction engineers
Timbatec Holzbauingenieure Schweiz AG, Thun
3600 Thun
Architect
Felber und Szelpal Architekten
4500 Solothurn
Client
Municipality of Lohn-Ammansegg
4573 Lohn-Ammansegg
